Cassava Pressing Machine - Hydraulic Press Dewater

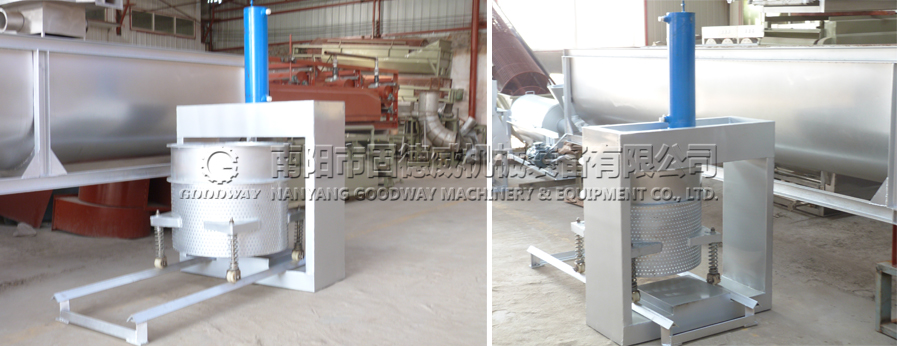

1. Cassava Pressing Machine(hydraulic press dewater) - Product Picture:
2. Cassava Pressing Machine(hydraulic press dewater) - Structure Feature:
This kind of vertical single frame press machine is composed of the press box, oil cylinder, press frame, press plate, electro-hydraulic control box and other components. The oil cylinder flange connects the oil cylinder and press frame to comprise a whole frame, the piston rod connects with the press plate, the press frame is made of welded steel plate, there are pulleys under the press box and connect to the press box by springs, The catheter tray and the liquid collection tank are installed at the bottom of the press box.
3. Cassava Pressing Machine(hydraulic press dewater) - Working Principle:
The electro-hydraulic control box outputs hydraulic oil to control the press plate move up and down, to achieve the materials pressing and automatic pressing force maintenance.
4. Cassava Pressing Machine(hydraulic press dewater) - Technical Parameter:
|
Model No. |
GD-HP-200 |
|
Machine Structure |
Single-Column Single-Cylinder |
|
Machine Material |
Stainless steel food contact + carbon steel frame body |
|
Capacity |
300-500KG/H |
|
Press Frame Volume |
230L |
|
Voltage |
380V&50/60Hz 3Phase |
|
Power |
4.0KW |
|
Cylinder Pressure |
15-20MPa |
|
Interior Casing Dimension |
700×700×600mm |
|
Dimension(L X W X H) |
1200×1350×2200mm |
|
Weight |
500KG |
| Mobile/WhatsApp: +86 185 6729 3677 Email: sale6@goodway.top | |
5. Cassava Pressing Machine(hydraulic press dewater) - Client Visiting:
