How to extract starch from sweet potato

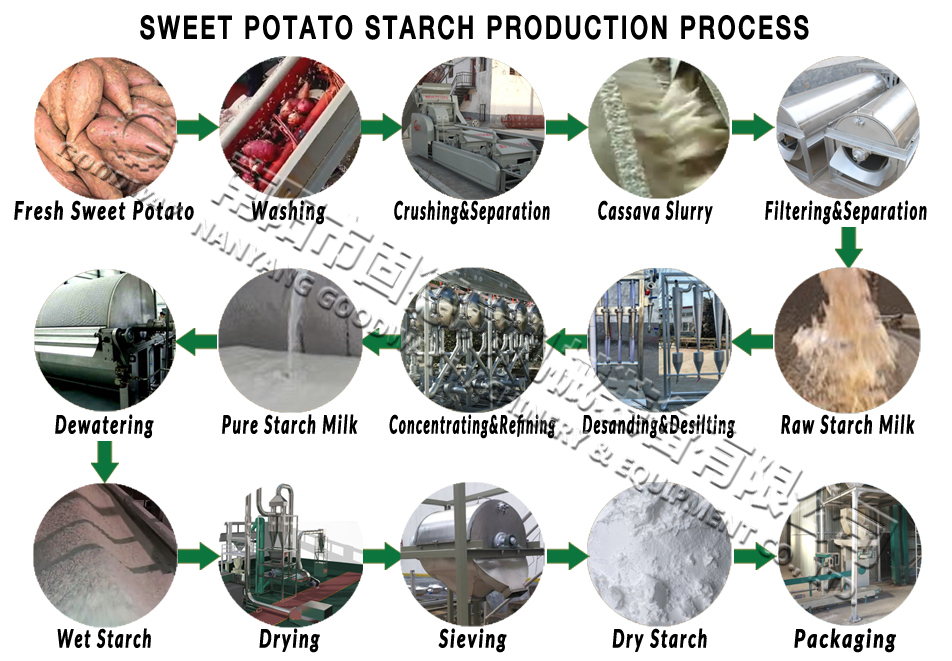

Sweet potato starch process flowchart:
The following flowchart provides a brief overview of the main sweet potato starch production process.

Sweet Potato Starch Production Process

Sweet potato starch processing machine description:
The production of sweet potato starch comprises the machines such as sweet potato washing machine, crushing machine, fine fiber sieve, de-sanding cyclone and de-silting cyclone, starch hydro cyclone, vacuum filter, airflow flash dryer and starch packaging machine. We have provided below a brief description on the main steps of the sweet potato starch production process.

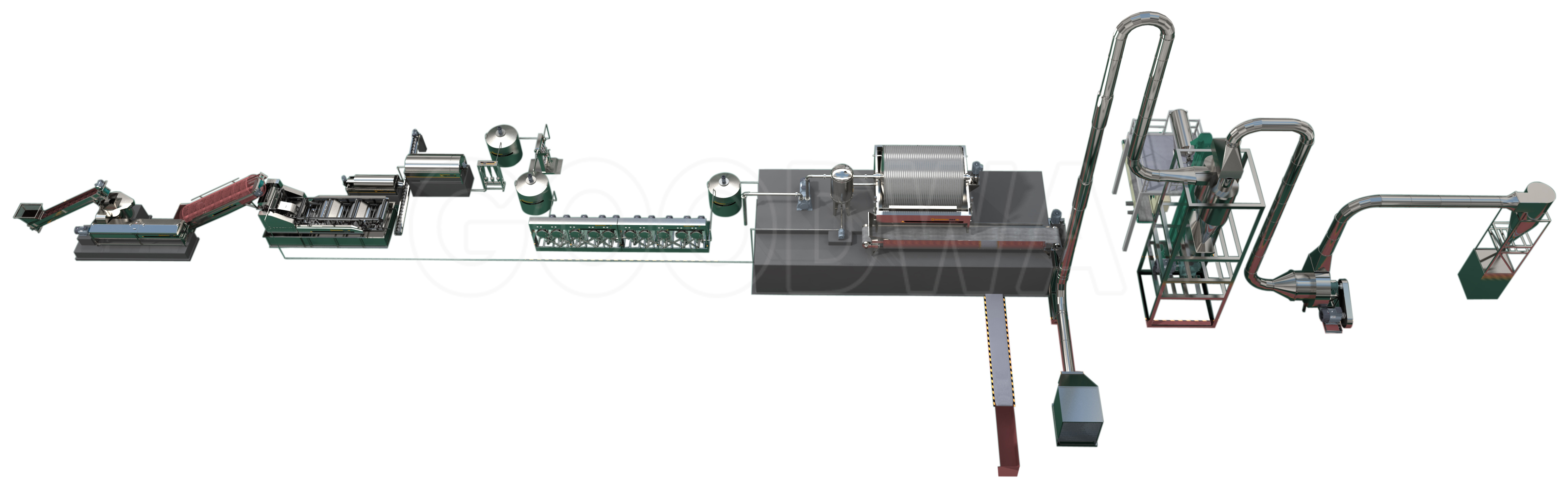

Sweet Potato Starch Processing Machine

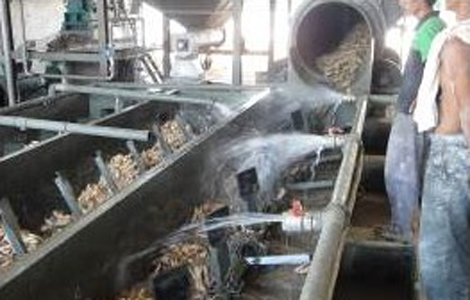

1. Sweet potato washing machine: wash the fresh sweet potato roots in clean water to remove mud, sand and other impurities. Note: The water source should be checked regularly to ensure it is not dirty or contaminated.
2. Sweet potato crushing machine(starch extraction machine): load the crusher with washed sweet potato roots while the engine is running to crush the sweet potato roots into the sweet potato slurry, and separate to remove the sweet potato residues, to obtain uniformly smooth sweet potato slurry. Note: The crushing drum and all food contact areas should be made from stainless steel.

Sweet Potato Washing Machine	Sweet Potato Crushing Machine

3. Fine fiber sieve(sweet potato sieving machine): commonly physical operation which is used for the separation of sweet potato residues from sweet potato slurry by interposing a medium(filter) through which only the raw starch milk can pass (depending on the pore size and filter thickness).
4. De-sanding cyclone and de-silting cyclone: solid control equipment that separate sand and silt from the raw starch milk. De-sanding cyclone is installed before the de-silting cyclone and normally the solids diameter for de-sanding cyclone to be separated would be larger than for de-silting cyclone.

Fine Fiber Sieve	De-sanding Cyclone and De-silting Cyclone

5. Starch hydro cyclone: classify, separate or sort particles in a liquid suspension based on the ratio of their centripetal force to fluid resistance, this ratio is high for dense and coarse particles, and low for light and fine particles.
6. Vacuum filter(sweet potato starch dewatering machine): it's considered a proven technique for separating fines from liquids to realize the starch water content up to 35-40% for the next starch drying.

Starch Hydro cyclone	Vacuum Filter

7. Airflow flash dryer(sweet potato starch drying machine): effectively dry the wet starch to low moisture content by principle of heat transfer exchange, and sieve to obtain fine granules of uniform size, larger particles of starch that are separated should be broken again.
8. Starch packaging machine: pack desired quantities into a woven polythene sack with a plastic lining, seal or stitch the sack to keep the starch clean and fresh during storage. Properly label the packages according to the standards of national reguArialry agencies.

Airflow Flash Dryer	Starch Packaging Machine
