How to extract starch from canna edulis ker

Canna edulis ker starch process flowchart:
The following flowchart provides a brief overview of the main canna edulis ker starch production process.

Canna Edulis Ker Starch Production Process

Canna edulis ker starch processing machine description:
The production of canna edulis ker starch comprises the machines such as canna edulis ker washing machine, crushing machine, fine fiber sieve, de-sanding cyclone and de-silting cyclone, starch hydro cyclone, vacuum filter, airflow flash dryer and starch packaging machine. We have provided below a brief description on the main steps of the canna edulis ker starch production process.

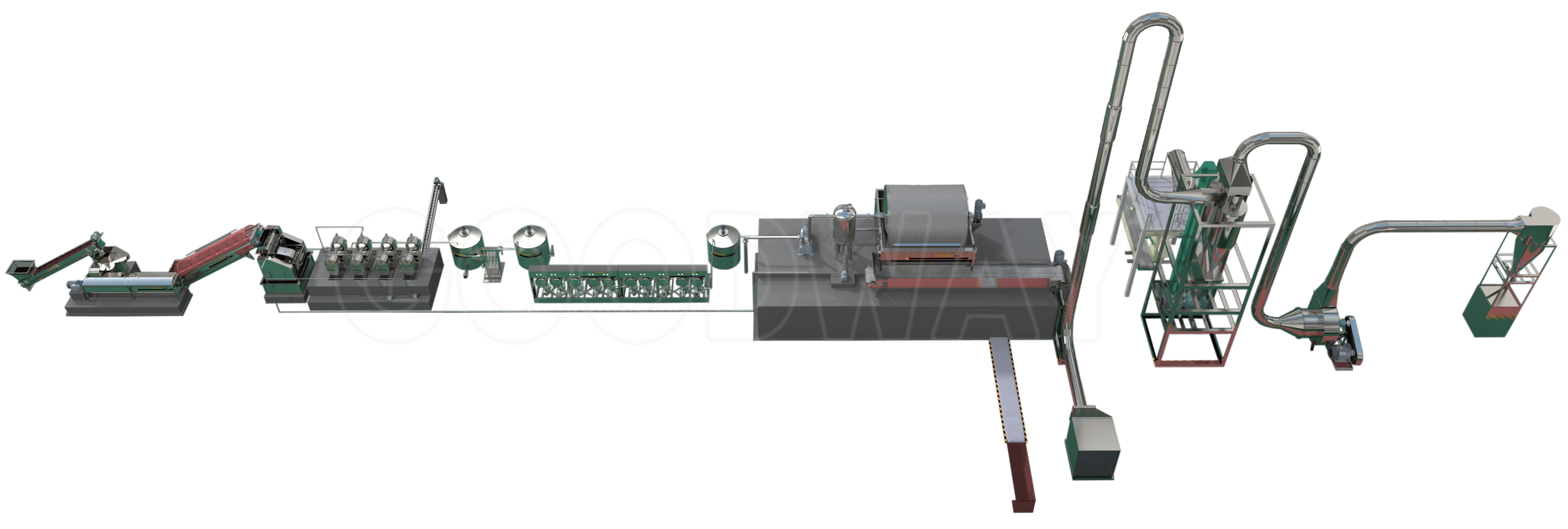

Canna Edulis Ker Starch Processing Machine

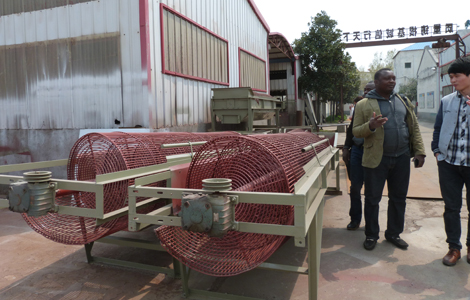

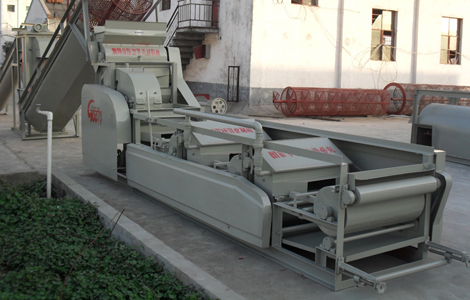

1. Canna edulis ker washing machine: wash the fresh canna edulis ker roots in clean water to remove mud, sand and other impurities. Note: The water source should be checked regularly to ensure it is not dirty or contaminated.
2. Canna edulis ker crushing machine(starch extraction machine): load the crusher with washed canna edulis ker roots while the engine is running to crush the canna edulis ker roots into the canna edulis ker slurry, and separate to remove the canna edulis ker residues, to obtain uniformly smooth canna edulis ker slurry. Note: The crushing drum and all food contact areas should be made from stainless steel.

Canna Edulis Ker Washing Machine	Canna Edulis Ker Crushing Machine

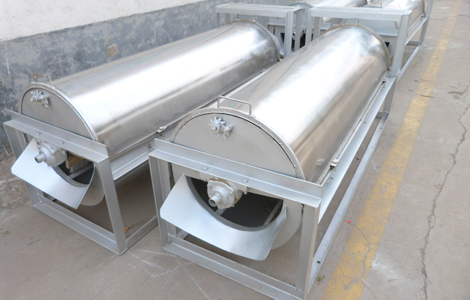

3. Fine fiber sieve(sieving machine): commonly physical operation which is used for the separation of canna edulis ker residues from canna edulis ker slurry by interposing a medium(filter) through which only the raw starch milk can pass (depending on the pore size and filter thickness).

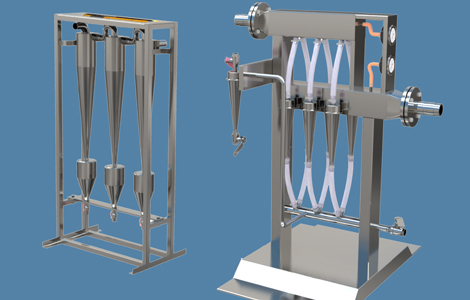

4. De-sanding cyclone and de-silting cyclone: solid control equipment that separate sand and silt from the raw starch milk. De-sanding cyclone is installed before the de-silting cyclone and normally the solids diameter for de-sanding cyclone to be separated would be larger than for de-silting cyclone.

Fine Fiber Sieve	De-sanding Cyclone and De-silting Cyclone

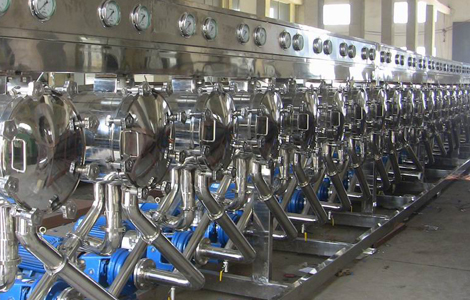

5. Starch hydro cyclone: classify, separate or sort particles in a liquid suspension based on the ratio of their centripetal force to fluid resistance, this ratio is high for dense and coarse particles, and low for light and fine particles.

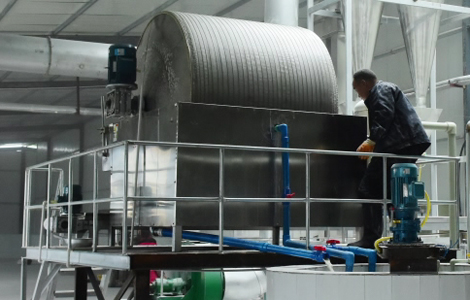

6. Vacuum filter(starch dewatering machine): it's considered a proven technique for separating fines from liquids to realize the starch water content up to 35-40% for the next starch drying.

Starch Hydro cyclone	Vacuum Filter

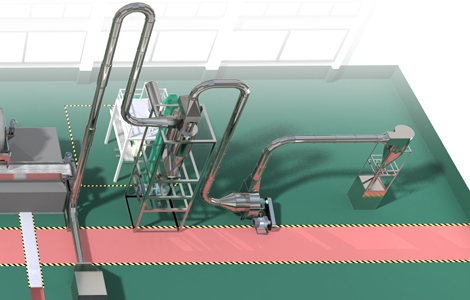

7. Airflow flash dryer(starch drying machine): effectively dry the wet starch to low moisture content by principle of heat transfer exchange, and sieve to obtain fine granules of uniform size, larger particles of starch that are separated should be broken again.

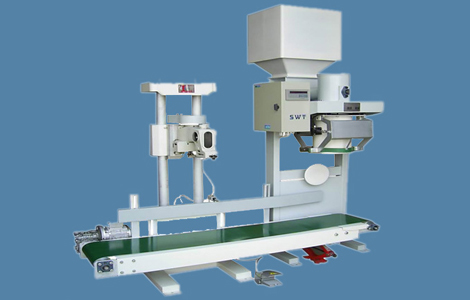

8. Starch packaging machine: pack desired quantities into a woven polythene sack with a plastic lining, seal or stitch the sack to keep the starch clean and fresh during storage. Properly label the packages according to the standards of national reguArialry agencies.

Airflow Flash Dryer	Starch Packaging Machine

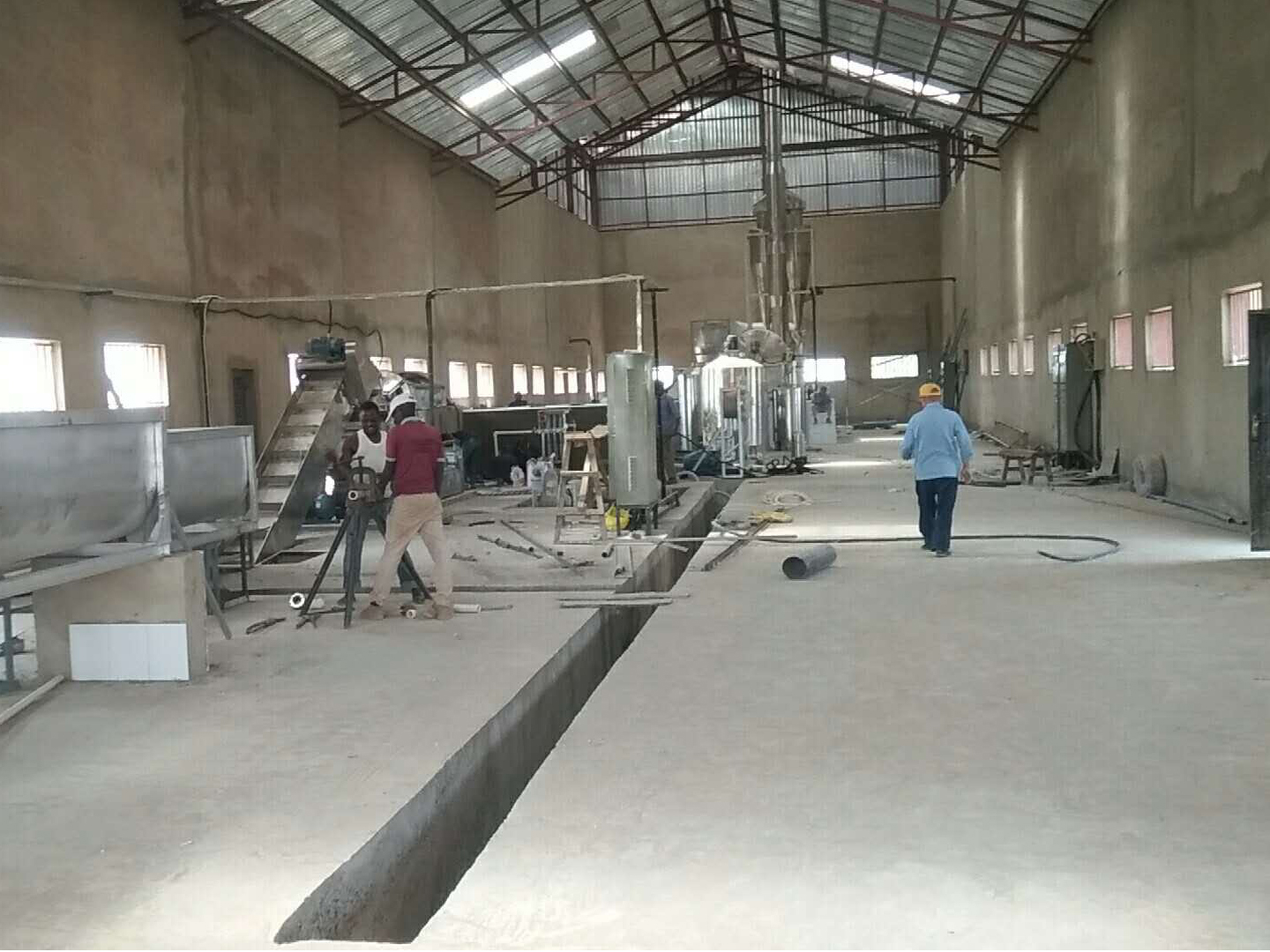

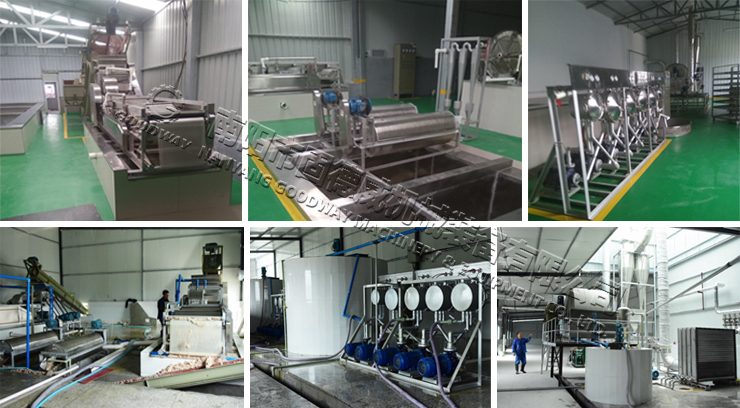

CANNA EDULIS KER STARCH PROCESSING MACHINE PROJECT CASE:

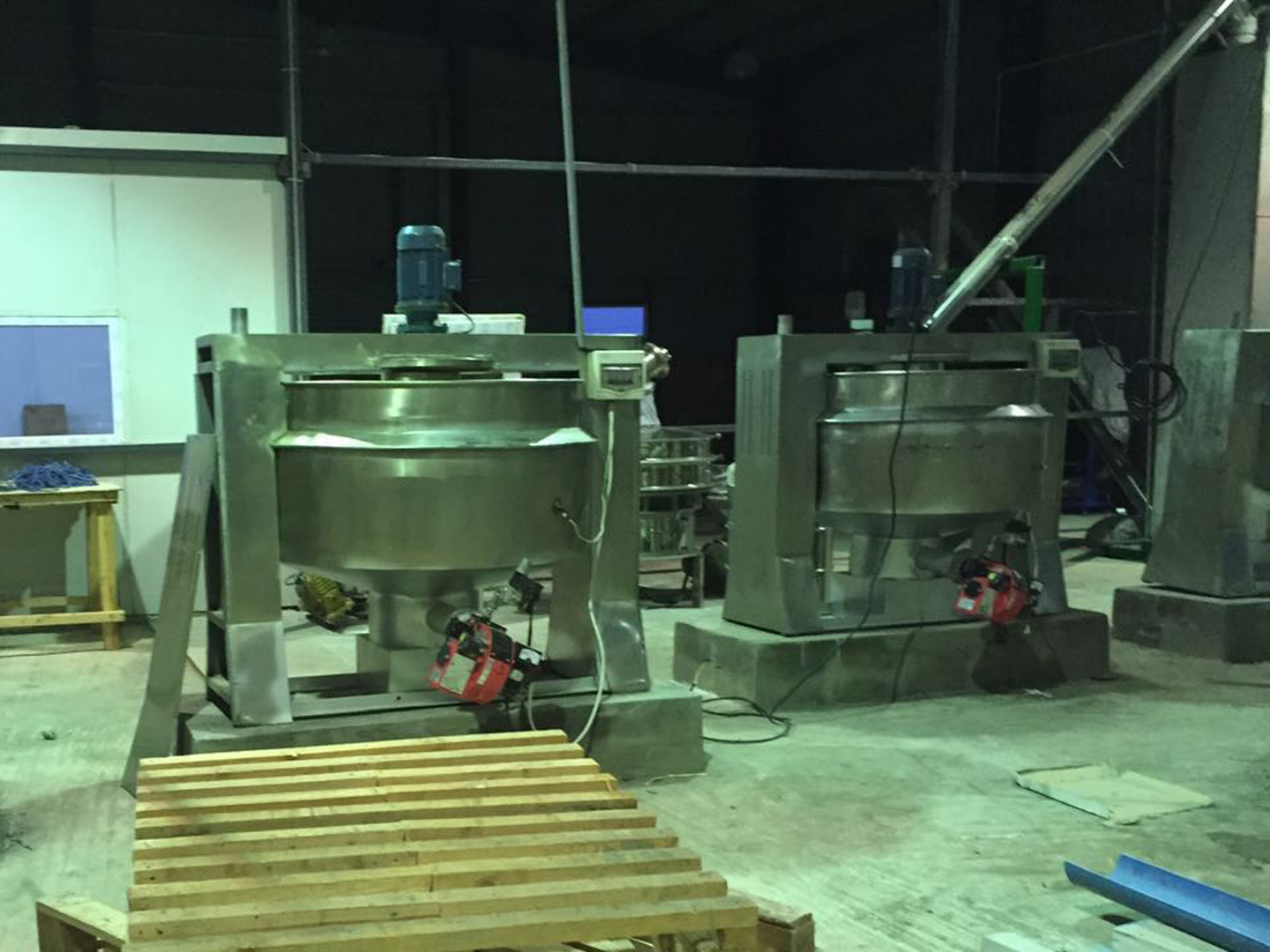

CANNA EDULIS KER STARCH PROCESSING MACHINE CLIENT VISITING:
